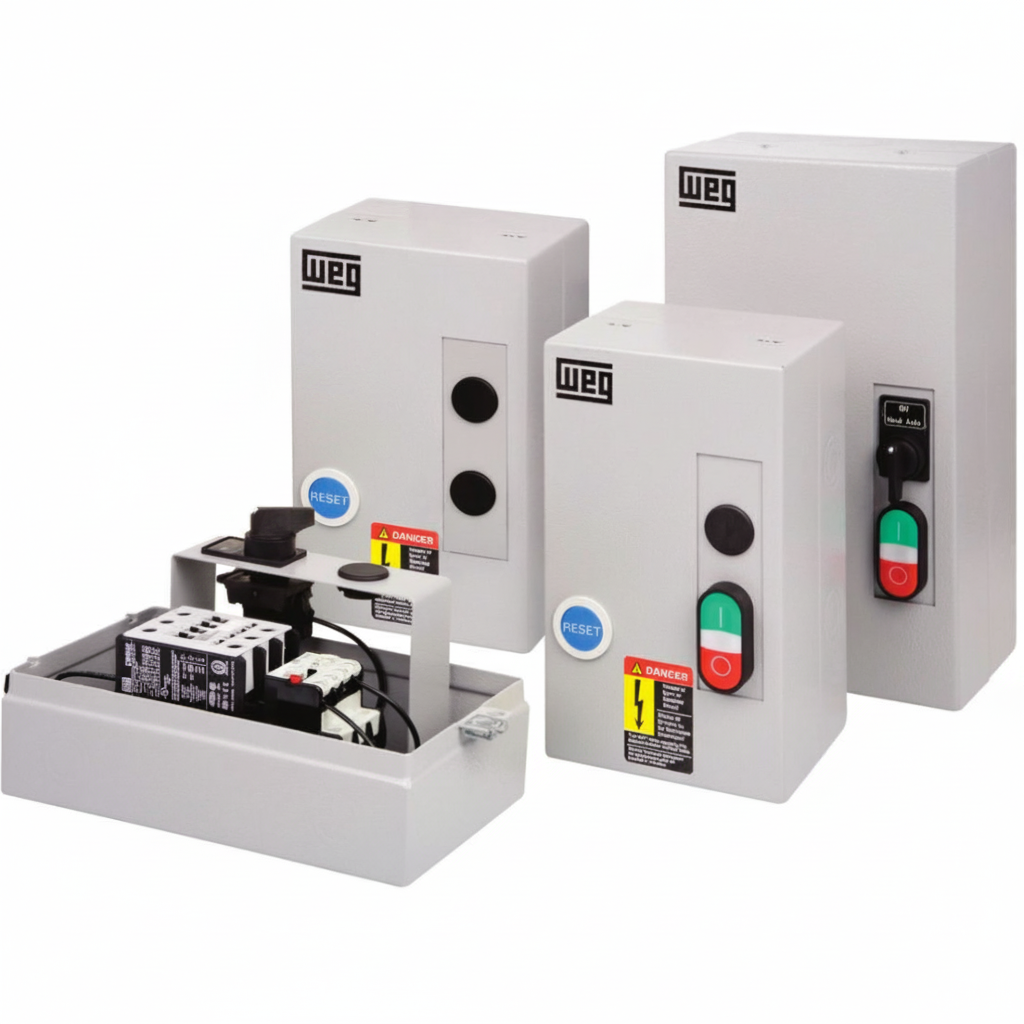

WEG enclosed starters series were designed to meet the requirements and flexibility frequently demanded in industrial applications. Featuring components that meet IEC design standards and UL horsepower ratings, WEG enclosed starters are UL508A approved and cULus certified. This means your panels will fulfill the rigorous requirements of UL508A and will have the quality and performance as for all WEG products.
Shop
Motor Starter
Login to view prices
| Model | 1 PH 115V | 1PH 230V/208V | 3PH 230V/208V | Manufacturers’ Catalog # | |||
|---|---|---|---|---|---|---|---|
| HP | AMPS | HP | AMPS | HP | AMPS | ||
| 11 – 17A | 0.75/1 | 14/16 | 2 | 13 | 3 | 10 | ESW-B18V24A-R32 |
| 15 – 23A | 1.5/2 | 20/24 | 3 | 18 | 5 | 16 | ESW-B25V24A-R33 |
| 22 – 32A | – | – | 5 | 28 | 7.8/10 | 22/28 | ESW-B32V24A-R34 |
| 32 – 50A | – | – | – | – | 10 | – | ESW-B50V24A-R71 |
