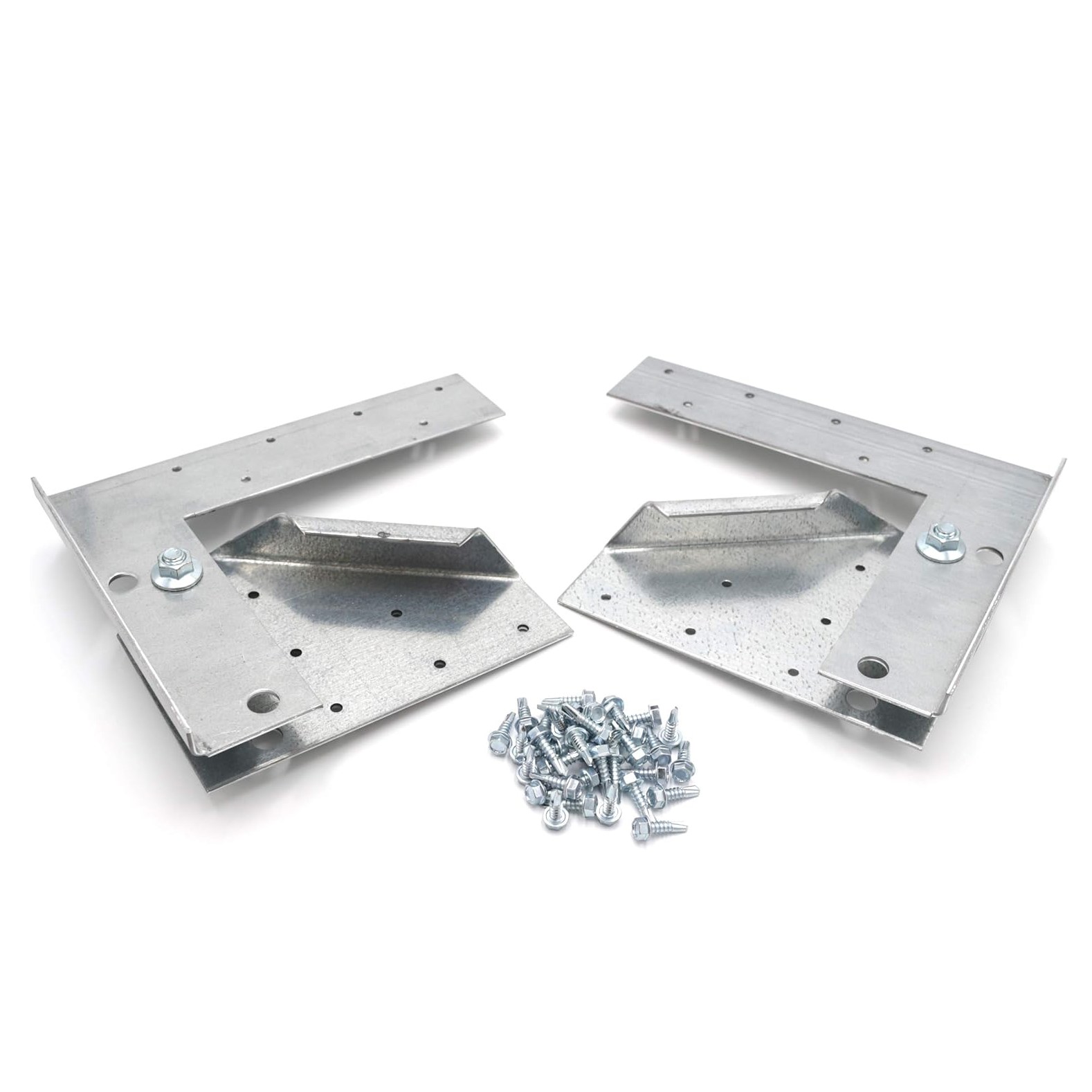

Heavy Duty Hinge Kit for Restaurant Canopy Hood Exhaust Fan
Login to view prices
Provides easy access to the bottom of the fan and to the exhaust ductwork for cleaning and maintenance.
Constructed of 10 or 12 gauge galvanized steel and includes a safety stop feature to prevent the hinge from opening beyond a certain angle, protecting the fan from damage.
| Size | Material | Fan Wheel | Fan Base | Size |
| Large | 10 GA Galvanized | Larger than 20″ | Larger than 28″ | 11″ x 7.75″ x 2.1″ |
| Small | 12 GA Galvanized | 20″ or smaller | 28” or smaller | 9.25″ x 7.5″ x 2.1″ |
