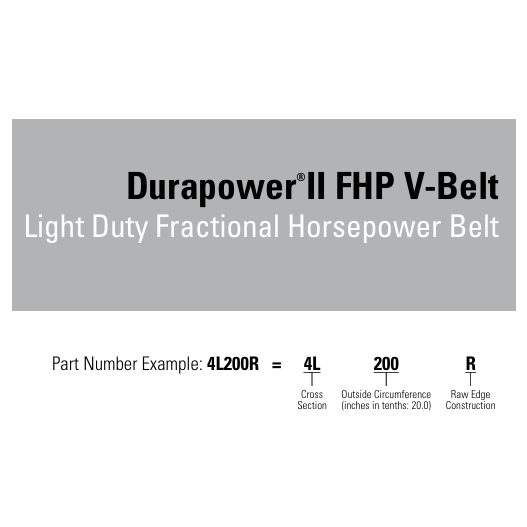

4L section V-belts

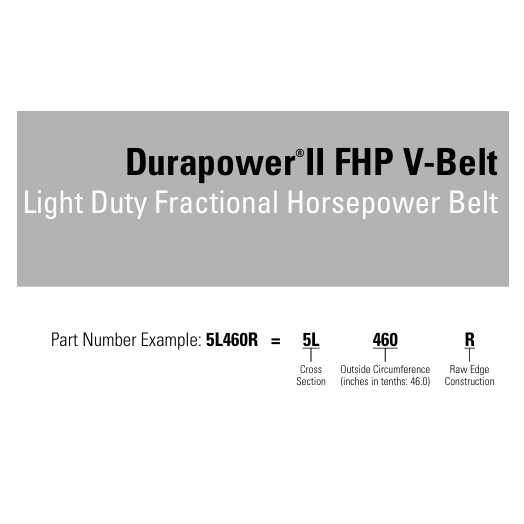

5L section V-belts
| Part Number | Outside Circum. (inches) | Outside Circum. (mm) |
|---|---|---|
| 4L200R | 19.9 | 506 |
| 4L210R | 20.8 | 528 |
| 4L220R | 21.7 | 551 |
| 4L230R | 23 | 584 |
| 4L240R | 23.9 | 607 |
| 4L250R | 24.8 | 630 |
| 4L260R | 25.8 | 655 |
| 4L270R | 27 | 686 |
| 4L280R | 28 | 711 |
| 4L290R | 28.9 | 734 |
| 4L300R | 29.9 | 760 |
| 4L305R | 30.2 | 767 |
| 4L310R | 30.8 | 782 |
| 4L315R | 31.1 | 790 |
| 4L320R | 31.8 | 808 |
| 4L330R | 33 | 838 |
| 4L340R | 33.9 | 861 |
| 4L350R | 34.9 | 887 |
| 4L360R | 35.8 | 909 |
| 4L370R | 36.8 | 935 |
| 4L380R | 37.7 | 958 |
| 4L390R | 38.9 | 988 |
| 4L400R | 39.9 | 1014 |
| 4L410R | 40.8 | 1036 |
| 4L420R | 41.8 | 1062 |
| 4L430R | 42.7 | 1085 |
| 4L440R | 43.7 | 1110 |
| 4L450R | 44.9 | 1141 |
| 4L460R | 45.9 | 1166 |
| 4L470R | 46.9 | 1191 |
| 4L480R | 47.7 | 1212 |
| 4L490R | 48.7 | 1237 |
| 4L500R | 49.9 | 1268 |
| 4L510R | 50.8 | 1290 |
| 4L515R | 51.4 | 1306 |
| 4L520R | 51.7 | 1313 |
| 4L530R | 52.7 | 1339 |
| 4L540R | 53.7 | 1364 |
| 4L550R | 54.9 | 1395 |
| 4L560R | 55.8 | 1417 |
| 4L570R | 56.8 | 1443 |
| 4L580R | 57.8 | 1468 |
| 4L590R | 59 | 1499 |
| 4L600R | 59.9 | 1522 |
| 4L610R | 60.9 | 1547 |
| 4L620R | 61.7 | 1567 |
| 4L630R | 63 | 1600 |
| 4L640R | 63.9 | 1623 |
| 4L650R | 64.8 | 1646 |
| 4L660R | 65.7 | 1669 |
| 4L670R | 66.7 | 1694 |
| 4L680R | 67.7 | 1720 |
| 4L690R | 68.6 | 1742 |
| 4L700R | 69.7 | 1770 |
| 5L230R | 23 | 584 |
| 5L240R | 23.9 | 607 |
| 5L250R | 24.9 | 633 |
| 5L260R | 26.1 | 663 |
| 5L270R | 27.1 | 688 |
| 5L280R | 28.1 | 714 |
| 5L290R | 29 | 737 |
| 5L300R | 29.9 | 760 |
| 5L310R | 31.2 | 793 |
| 5L320R | 31.8 | 808 |
| 5L330R | 33.1 | 841 |
| 5L340R | 33.7 | 856 |
| 5L350R | 35 | 889 |
| 5L360R | 35.9 | 912 |
| 5L370R | 36.9 | 937 |
| 5L380R | 37.8 | 960 |
| 5L390R | 38.7 | 983 |
| 5L400R | 40 | 1016 |
| 5L410R | 41 | 1041 |
| 5L420R | 41.9 | 1064 |
| 5L430R | 42.8 | 1087 |
| 5L440R | 44.1 | 1120 |
| 5L450R | 45 | 1143 |
| 5L460R | 46 | 1168 |
| 5L470R | 47.3 | 1201 |
| 5L480R | 48.2 | 1224 |
| 5L490R | 49.1 | 1247 |
| 5L500R | 50.1 | 1273 |
| 5L510R | 51 | 1295 |
| 5L520R | 52 | 1321 |
| 5L530R | 52.9 | 1344 |
| 5L540R | 53.9 | 1369 |
| 5L550R | 55.1 | 1400 |
| 5L560R | 55.8 | 1417 |
| 5L570R | 57 | 1448 |
| 5L580R | 58 | 1473 |
| 5L590R | 58.9 | 1496 |
| 5L600R | 59.8 | 1519 |
| 5L610R | 60.8 | 1544 |
| 5L620R | 62.1 | 1577 |
| 5L630R | 63 | 1600 |
| 5L640R | 63.9 | 1623 |
| 5L650R | 64.9 | 1649 |
| 5L660R | 66.1 | 1679 |
| 5L670R | 66.8 | 1697 |
| 5L680R | 68 | 1727 |
| 5L690R | 69 | 1753 |
| 5L700R | 69.9 | 1776 |
| 5L710R | 70.9 | 1801 |
| 5L720R | 72.1 | 1831 |
| 5L730R | 73.1 | 1857 |
| 5L740R | 74 | 1880 |
| 5L750R | 75 | 1905 |
| 5L760R | 75.9 | 1928 |
| 5L770R | 76.9 | 1953 |
| 5L780R | 78.1 | 1984 |
| 5L790R | 79.1 | 2009 |
| 5L800R | 80 | 2032 |
Product features:
| Part Number | 4L200R, 4L210R, 4L220R, 4L230R, 4L240R, 4L250R, 4L260R, 4L270R, 4L280R, 4L290R, 4L300R, 4L305R, 4L310R, 4L315R, 4L320R, 4L330R, 4L340R, 4L350R, 4L360R, 4L370R, 4L380R, 4L390R, 4L400R, 4L410R, 4L420R, 4L430R, 4L440R, 4L450R, 4L460R, 4L470R, 4L480R, 4L490R, 4L500R, 4L510R, 4L515R, 4L520R, 4L530R, 4L540R, 4L550R, 4L560R, 4L570R, 4L580R, 4L590R, 4L600R, 4L610R, 4L620R, 4L630R, 4L640R, 4L650R, 4L660R, 4L670R, 4L680R, 4L690R, 4L700R, 5L230R, 5L240R, 5L250R, 5L260R, 5L270R, 5L280R, 5L290R, 5L300R, 5L310R, 5L320R, 5L330R, 5L340R, 5L350R, 5L360R, 5L370R, 5L380R, 5L390R, 5L400R, 5L410R, 5L420R, 5L430R, 5L440R, 5L450R, 5L460R, 5L470R, 5L480R, 5L490R, 5L500R, 5L510R, 5L520R, 5L530R, 5L540R, 5L550R, 5L560R, 5L570R, 5L580R, 5L590R, 5L600R, 5L610R, 5L620R, 5L630R, 5L640R, 5L650R, 5L660R, 5L670R, 5L680R, 5L690R, 5L700R, 5L710R, 5L720R, 5L730R, 5L740R, 5L750R, 5L760R, 5L770R, 5L780R, 5L790R, 5L800R |
|---|
