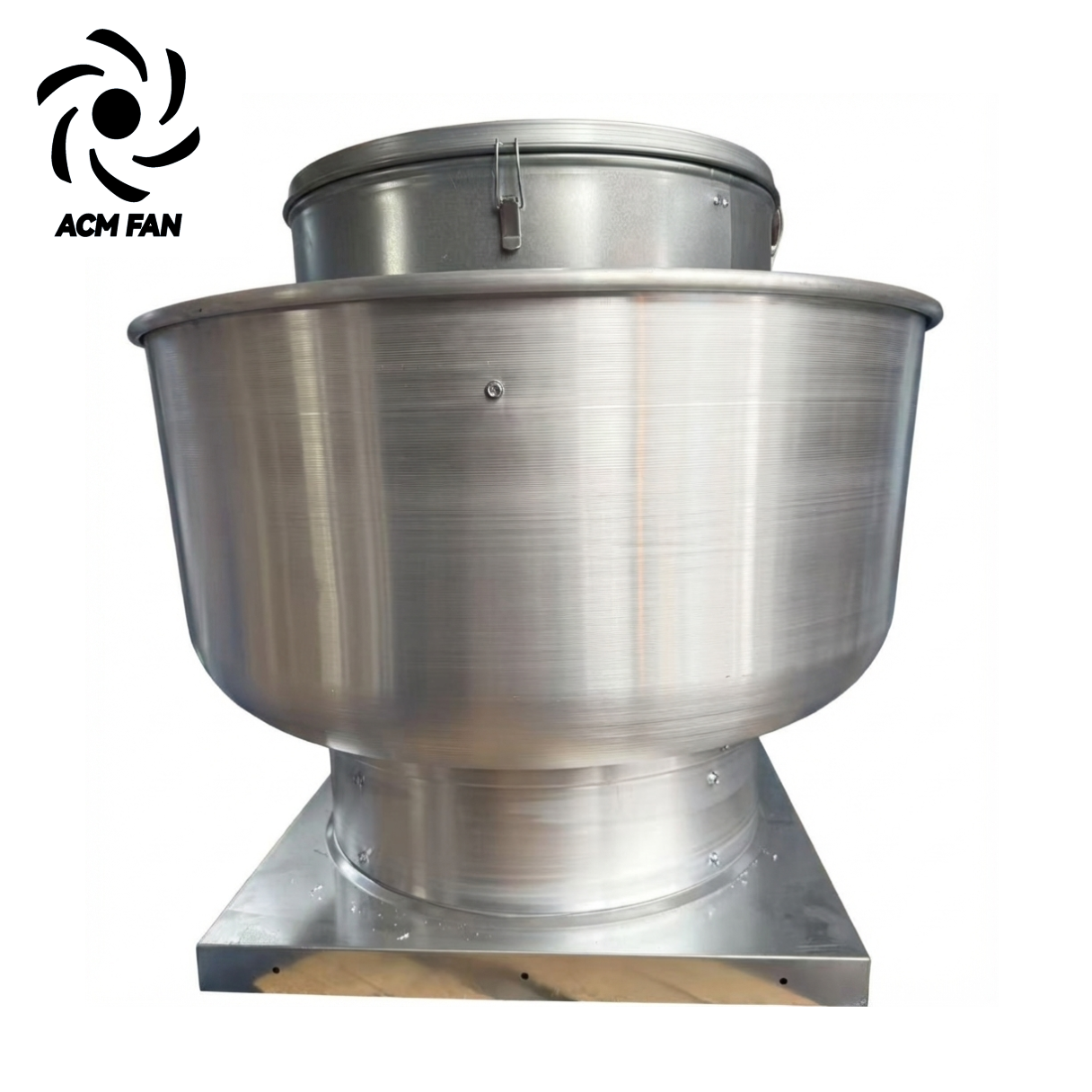

MAIN TECHNICAL SPECIFICATION

Models: ACM-16, ACM-18, ACM-20, ACM-24

Air Volume: 3200 to 8000 cfm

Maximum SP: 3.5″ wg. @ standard air density

FEATURES & BENEFITS

A wide variety of motors are available to meet specific application needs.

Heavy duty construction, durable and weather resistant.

Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum.

Wall mount applications, units up to 24″ nominal wheel can be wall mounted.

Forced fresh air through the motor compartment cools motor and ensures long motor life.

Quick release latches allow for easy access to motor compartment.

Variable pitch motor pulley allows for field adjustment and system balancing.

High efficiency combined with low tip speeds result in quiet operation.

Standard emergency disconnect switch.

OPTIONS

Roof Curb. (Vented & Non-Vented)

Grease Collection Box.

Base Hinging Kit or Hinged Sub Base. (for NFPA96 compliance)

Extra Set of V-Belts
